Issue Tracker: Setting Up

To set up the project, I simply selected a New Project, selected ASP MVC 3 from the Web templates, renamed, and clicked OK.  That brought up the ASP MVC3 Dialog, where I selected an Internet Application, Razor view syntax, and did not choose to enable HTML 5 semantics.

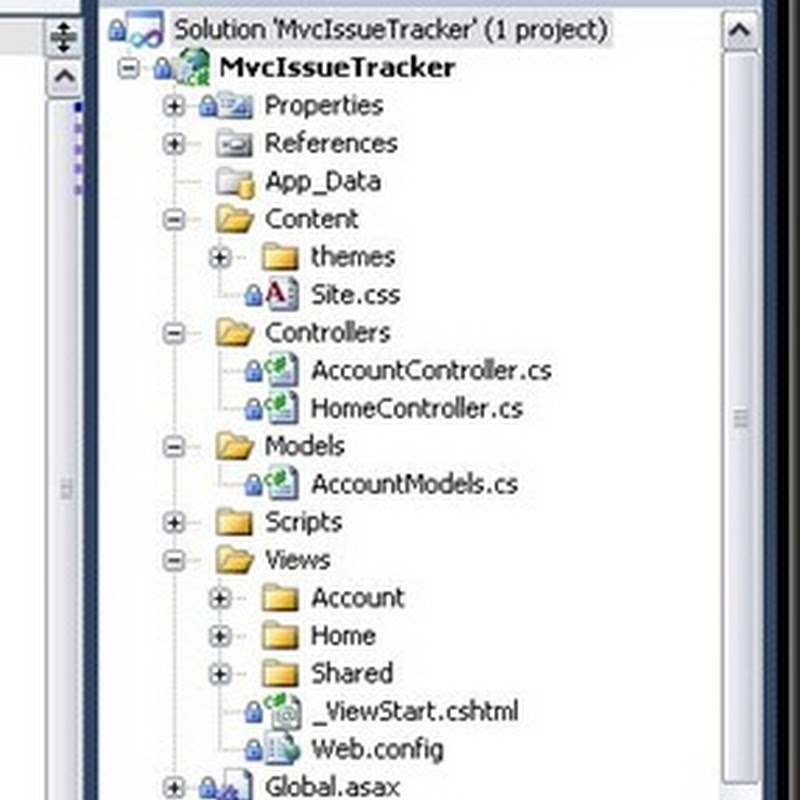

That got me this:

A basic Website Set up.  If I run it, it says, essentially, “Hello World.”

Right-click the solution and select “Add Solution to Source Control” and it’s even on CodePlex for me.

That done, it’s time to move onto the models.  As I said before, we’ll have 3 table entities- Issues, Work Notes, and Users, and an enum value for Role.  So, first off, an Issue class…

   1:  using System;

   2:  using System.Collections.Generic;

   3:  using System.ComponentModel.DataAnnotations;

   4:  using System.Data.Entity;

   5:  using System.Linq;

   6:  using System.Web;

   7:

   8:  namespace MvcIssueTracker.Models

   9:  {

  10:      public class Issue

  11:      {

  12:          public int IssueId { get; set; }

  13:

  14:          [Required(ErrorMessage="A Title is required.")]

  15:          [StringLength(100, MinimumLength=15)]

  16:          public string Title { get; set; }

  17:

  18:          [Required(ErrorMessage="A Detailed Description is required.")]

  19:          public string Description { get; set; }

  20:

  21:          public int CreatedBy { get; set; }

  22:          public DateTime CreatedDate { get; set; }

  23:

  24:          public int AssignedTo { get; set; }

  25:          public DateTime? LastUpdatedDate { get; set; }

  26:

  27:          public int ClosedBy { get; set; }

  28:          public DateTime? ClosedDate { get; set; }

  29:

  30:          public virtual User AssignedUser { get; set; }

  31:          public virtual ICollection<WorkNote> WorkNotes { get; set; }

  32:      }

  33:  }

Note that I dispensed with the convention of calling it “IssueModel.”  It’s in the Model folder (and, therefore, the MvcIssueTracker.Models namespace).  I went ahead and added my data notations as well, since I’ll need them eventually anyway.

One down, two (and a half?) to go.

   1:  using System;

   2:  using System.Collections.Generic;

   3:  using System.Linq;

   4:  using System.Web;

   5:  using System.ComponentModel.DataAnnotations;

   6:

   7:  namespace MvcIssueTracker.Models

   8:  {

   9:      public class WorkNote

  10:      {

  11:          public int WorkNoteId { get; set; }

  12:

  13:          [Required(ErrorMessage = "Details are required.")]

  14:          public string Detail { get; set; }

  15:          public DateTime LoggedDate { get; set; }

  16:

  17:          public int IssueId { get; set; }

  18:

  19:          public virtual Issue AttachedIssue { get; set; }

  20:      }

  21:  }

   1:  using System;

   2:  using System.Collections.Generic;

   3:  using System.ComponentModel.DataAnnotations;

   4:  using System.Data.Entity;

   5:  using System.Linq;

   6:  using System.Web;

   7:

   8:  namespace MvcIssueTracker.Models

   9:  {

  10:      public class User

  11:      {

  12:          public int UserId { get; set; }

  13:

  14:          [Required(ErrorMessage = "UserName is required.")]

  15:          public string UserName { get; set; }

  16:

  17:          public string LastName { get; set; }

  18:          public string FirstName { get; set; }

  19:          public string Location { get; set; }

  20:          public string Password { get; set; }

  21:          public Role Role { get; set; }

  22:

  23:          public virtual ICollection<Issue> AssignedIssues { get; set; }

  24:      }

  25:  }

And, finally, the Roles enum:

   1:  namespace MvcIssueTracker.Models

   2:  {

   3:      public enum Role

   4:      {

   5:          User, //The base user- able only to create issues and add worknotes

   6:          Developer, //User functionality + close issues

   7:          Manager, //Same functionality as Developer- listed differently for audit type purposes

   8:          Administrator, //Developer + Delete issues

   9:      }

  10:  }

So, a quick Save All, and a Build to make sure nothing obvious is immediately broken… And we’re done.  A set of classes for our data model.

In the next installment, we’ll look at getting the DataContext set up, and begin building controllers and views.
